A tower crew finishes a clean install. The steel is plumb, the radios are mounted, the fiber path tests well, and everyone wants to move on. Then the first hard wind event hits, or a freeze-thaw cycle shifts the ground, or a cable support point takes more tension than the field team expected. The problem often isn't the visible hardware. It's the anchorage.
That's why quality transmission anchorage deserves more attention than it usually gets. In telecom and utility work, anchors sit at the boundary between design intent and field reality. If that boundary is weak, everything above it becomes harder to trust, from pole stability to cable strain relief to long-term maintenance planning.
Overview of Transmission Anchorage in Telecom and Utilities
A failed anchor rarely announces itself early. A tower may lean slightly. A monopole base may start showing connection distress. A fiber route may develop localized strain where the support method looked acceptable on install day but couldn't handle temperature swing, settlement, or repeated loading.
In telecom work, people sometimes use the phrase quality transmission anchorage as if it were a defined technical standard. It isn't. The available search results don't show a recognized telecom benchmark or formal industry definition for that phrase. They mostly reflect a naming mix-up involving an automotive business in Anchorage, Alaska, and unrelated city-level telecom data such as projected 2026 cell coverage medians of 46.2 Mbps download, 13.7 Mbps upload, and 65 ms latency based on 400+ tests, none of which defines an anchorage metric for network engineering (Yelp listing referenced in the verified data).
That matters because teams need a practical definition, not a vague phrase. In the field, the term should mean this: an anchorage system that safely transfers load, maintains alignment, protects connected assets, and remains inspectable over its service life.
Where telecom and utility crews overlap
Telecom teams and utility crews often solve the same mechanical problem in different language:
- Tower and monopole crews need anchors that hold structure and alignment under wind and equipment loading.
- Fiber teams need support and restraint methods that don't crush, kink, or overstress cable.
- Data center operators need embedded and post-installed anchors that hold racks, overhead supports, and pathway infrastructure without hidden installation defects.
- Transmission and distribution crews already think in terms of load path, retention, and long-term inspection.
That overlap is why utility-style anchorage thinking helps telecom teams make better decisions. If your work includes monopoles, pad foundations, duct-bank transitions, generator pads, or antenna support structures, the same logic used in cell tower construction projects belongs in your anchorage review.
Good anchorage doesn't just stop collapse. It preserves geometry, reduces unintended movement, and gives every connected component a fair chance to perform as designed.

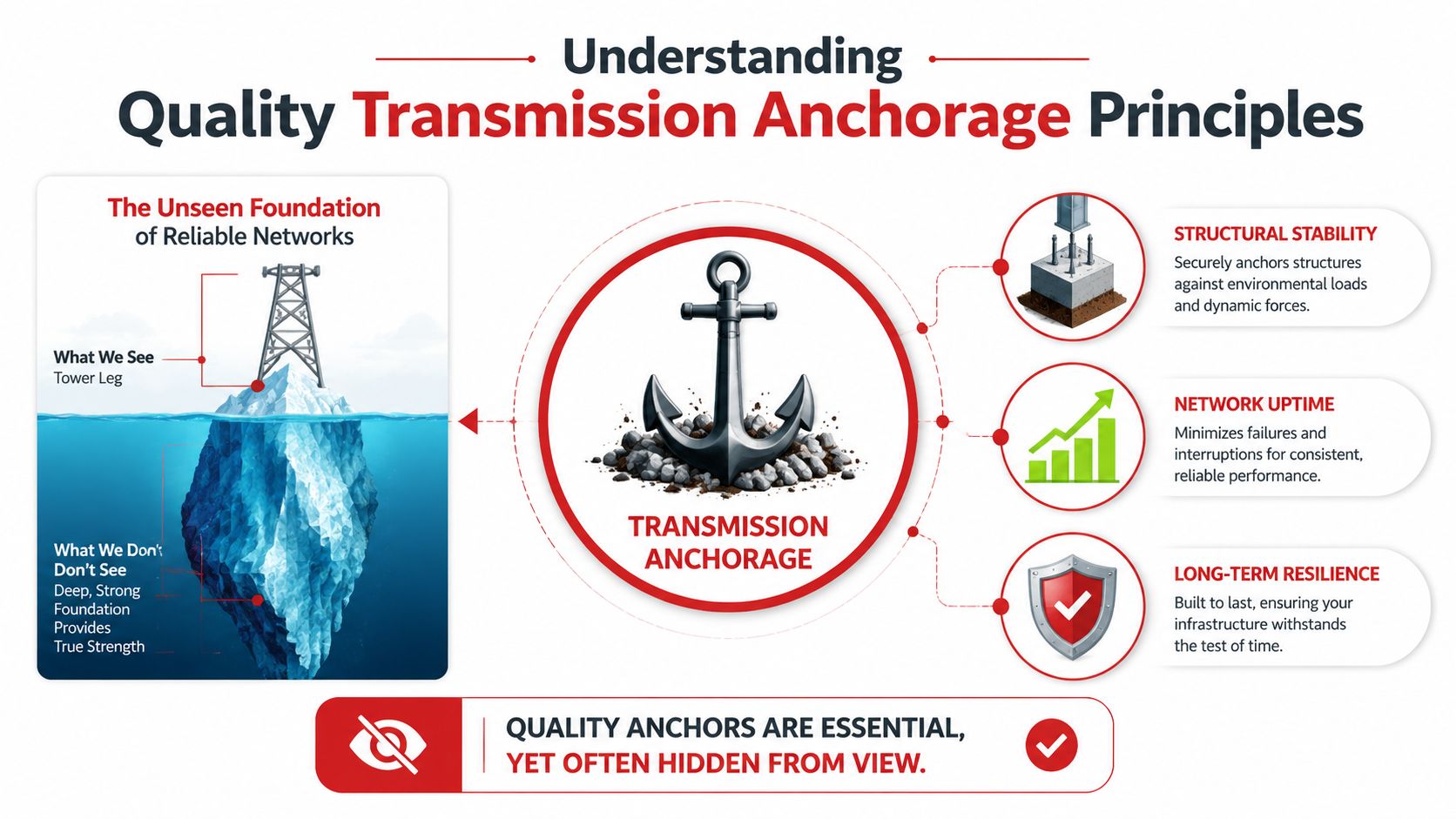

Understanding Quality Transmission Anchorage Principles
Most anchorage problems come from a simple misunderstanding. Teams look at the visible structure and underestimate the hidden force path below it. A tower leg, utility pole support, or cable restraint point works like the tip of an iceberg. The part you see only survives because a much larger system beneath or behind it is doing the hard work.
Anchorage is a load path, not a single part
Engineers sometimes talk about anchors as if they are bolts, rods, clips, or grouted elements. That's incomplete. More accurately, the anchorage system includes:
- The loaded component such as a tower leg, messenger support, pole, tray support, or conductor attachment
- The transfer hardware such as bolts, clips, rods, plates, or embedded steel
- The surrounding medium such as grout, concrete, rock, or soil
- The geometry that determines how force moves through the assembly
If any one of those pieces is mismatched, the anchor may still pass a visual check while underperforming mechanically.
The three forces that confuse teams most
Telecom crews often focus on static weight because it's easy to picture. Anchorage design gets harder when movement enters the picture.
Tension
A guyed support, suspended cable, or pull from attached hardware can try to extract an anchor or drag it out of alignment.Shear
Lateral force acts across the connection. Wind, impact, equipment sway, and thermal movement can all create this.Overturning
Tall structures convert lateral load into a rotation demand at the base. That means one side of the anchorage system may move toward compression while another side moves toward uplift.
Why signal performance can depend on mechanical stability
Anchorage doesn't improve RF performance or fiber loss directly. It protects the physical conditions that those systems need. A shifting mount can alter antenna orientation. A poorly restrained cable can see bending, abrasion, or connector stress. A moving support frame can transfer vibration into critical equipment.
Field test: If movement at the anchor would change alignment, strain, or clearance anywhere upstream, then the anchor belongs in your network reliability plan, not just your civil checklist.
A shared mental model for telecom and utilities
Utility engineers often start with mechanical retention and durability, then work upward to service reliability. Telecom teams sometimes do the reverse. The strongest approach combines both. Start with the load path. Then ask what movement, corrosion, curing error, or installation drift would do to the service you're trying to protect.
That's the practical meaning of quality transmission anchorage. It isn't a branded method or a published telecom standard. It's the discipline of making hidden support systems as intentional as the network assets they hold.
Evaluating Quality Metrics and Industry Standards
You can't judge anchor quality by appearance alone. A clean install may still have the wrong embedment, poor grout consolidation, bad load transfer, or incomplete documentation. Quality comes from measurable criteria tied to the project's risk profile.
The core metrics that matter
Start with a short list. Most anchor reviews become clearer when teams check these items first:
- Load capacity: Can the assembly resist expected tension, shear, and uplift without slipping, cracking, or deforming beyond acceptable limits?
- Displacement behavior: How much movement occurs under working load, and does that movement threaten alignment, cable strain, or attachment integrity?
- Durability: Will corrosion, moisture, freeze-thaw, or chemical exposure weaken the connection before the planned maintenance cycle catches it?
- Constructability: Can crews install and verify the anchor consistently in the actual field conditions, not just on paper?
- Inspectability: Can future teams see enough of the connection to assess condition and confirm that the as-built matches the design?
Why quality systems matter as much as strength
A strong anchor can still become a weak asset if nobody controls assembly, grouting, stressing, and follow-up verification. That's where civil and utility standards give telecom teams a useful template.
For post-tensioned ground anchor systems used in transmission infrastructure, Austroads Technical Specification ATS 5140 requires documented quality control for supply, assembly, grouting, stressing, and monitoring, and it applies to both temporary and permanent anchors. It also requires quality systems and periodic testing to verify load-bearing capacity over time, which is exactly the kind of discipline telecom programs often need when foundations and support points become critical reliability assets (Austroads ATS 5140 reference in verified data).
Industry standards comparison
| Standard | Applicability | Key Requirement |
|---|---|---|
| Austroads ATS 5140 | Post-tensioned ground anchor systems in transmission infrastructure | Requires documented quality control for supply, assembly, grouting, stressing, and monitoring |
| ASTM standards | Material and installation details for concrete, steel, coatings, and testing | Use the project-specific ASTM references to define fabrication, material properties, and test methods |
| IEC and utility design frameworks | Power and transmission environments with structured reliability expectations | Align anchor performance with the broader system's mechanical and service requirements |
The table highlights a common mistake. Teams often ask for “the anchorage standard” when the right answer is usually a stack of standards. One governs the anchor method. Another governs steel or grout. Another governs coating. Another governs inspection and acceptance.
Picking the right benchmark
Choose standards by asking three practical questions:
- Is the anchor temporary or permanent?
- Is the dominant risk structural movement, cable strain, or long-term degradation?
- Will the system live in a telecom site, a utility corridor, or a mixed environment with both civil and network impacts?
That kind of standard selection becomes easier when telecom teams borrow from the discipline already common among power line construction contractors, especially on projects where ground conditions, tensioned systems, and maintenance access all interact.
If your acceptance criteria only say “installed per plan,” your QA language is too weak. A good acceptance package also defines what must be measured, recorded, and rechecked later.

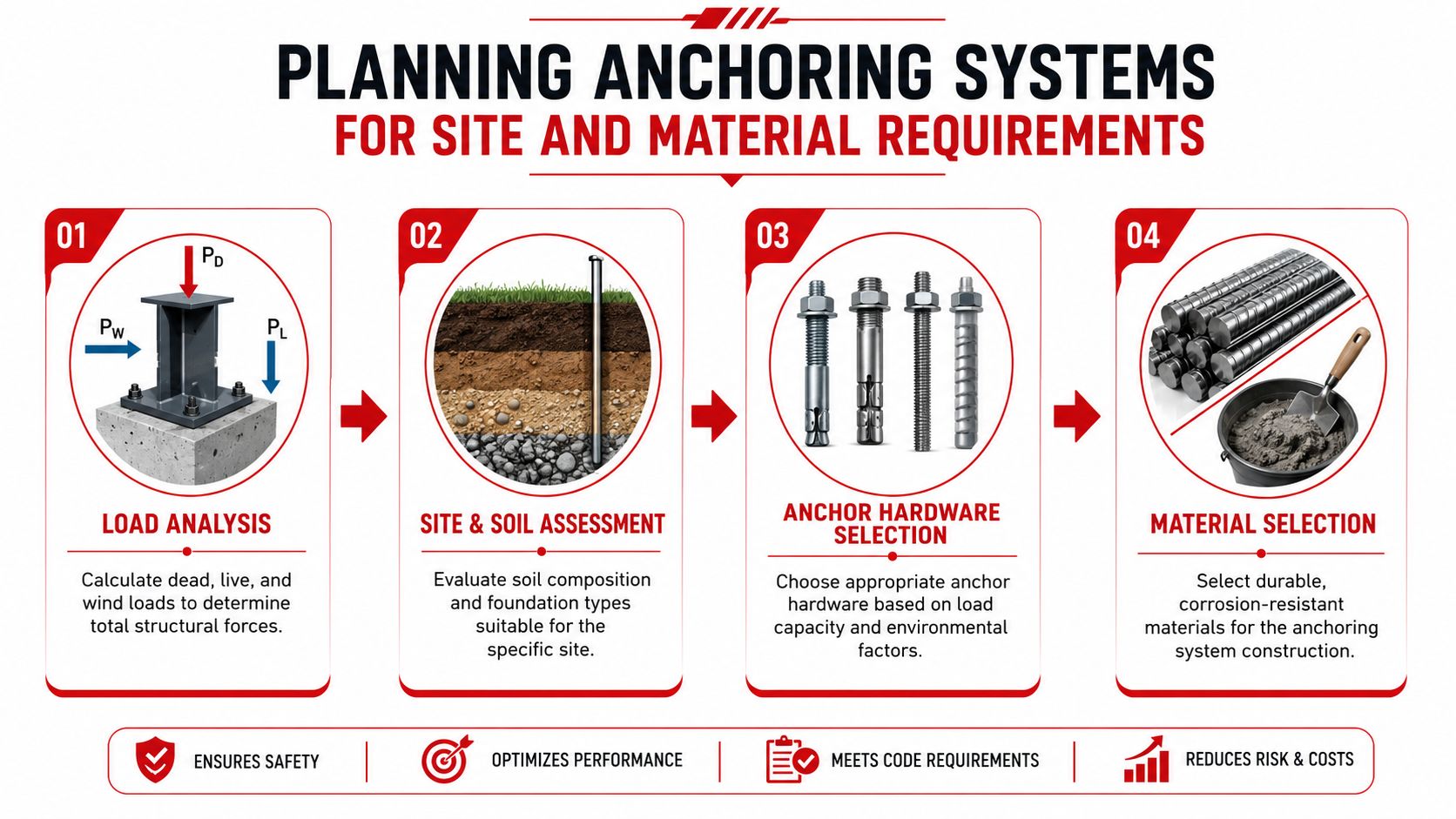

Planning Anchoring Systems for Site and Material Requirements
Anchor design starts long before a crew drills, excavates, or places grout. The planning stage decides whether the field team gets a forgiving system or a fragile one. Good planning translates mechanical demand into site-specific details that installers can execute.
Start with the full load picture
A design brief should identify every force that can reach the anchor. That sounds obvious, but many field issues happen because one “secondary” load wasn't treated as real.
Consider the common inputs:
- Dead load from the permanent structure and mounted equipment
- Live and maintenance load from technicians, temporary gear, or service operations
- Wind demand on towers, poles, antennas, cable trays, and exposed conduits
- Thermal effects that expand or contract attached members and tensioned lines
- Settlement or frost movement that changes support conditions over time
- Vibration and cyclic loading from repeated environmental or operational stress
A telecom monopole base and a utility dead-end support don't look the same, but they share the same question: where does the force go, and what happens when it reverses or repeats?
Translate utility metrics carefully
Transmission-line engineering gives telecom teams a useful way to think about minimum retention. In high-voltage transmission design, metal assembly elements used for conductor anchorage must have a minimum breaking load of at least 120 kN, and for compression clips, each assembly element must equal 95% of the breaking load of the cables. Those values exist to preserve structural integrity under tensile demand and to reduce slippage or failure under wind and thermal loading (transmission line design reference in verified data).
Telecom engineers shouldn't copy those figures blindly into unrelated installations. The lesson is the important part. Anchorage hardware should be sized in direct relationship to the thing it restrains, not chosen by habit or warehouse availability.
Match the anchor type to the ground
The right anchor in rock may be the wrong anchor in loose granular soil. That's where many generalized foundation guides stop too early.
Rocky or very dense ground
In hard ground, crews often prefer drilled and grouted systems because the surrounding material can provide strong confinement if the borehole is clean and the grout placement is controlled. The challenge is execution quality. If crews don't remove dust and debris, the bond can be unreliable even when the hardware itself is strong.
Sandy or variable soils
Loose soils raise different problems. Pullout resistance can be harder to trust, and moisture conditions can change behavior over time. In these settings, the engineer may lean toward larger embedded systems, spread footing concepts, or anchor solutions that distribute load over more volume rather than concentrating it at one narrow interface.
Freeze-prone sites
Cold-region work deserves special caution. Seasonal movement can change line, grade, and support behavior. The anchor might not “fail” in the classic sense, but shifting ground can still create enough displacement to affect cable strain, conduit alignment, or equipment support.
Design shortcut to avoid: Don't pick hardware first and then look for a soil narrative that makes it acceptable. Start with the site, then choose the anchor family.
Select materials for the environment you actually have
Material choice is often where budget pressure shows up. This is also where future maintenance costs get locked in.
A practical material review should consider:
- Base metal compatibility so one part doesn't accelerate corrosion in another
- Protective coatings appropriate for buried, splash-zone, or exposed conditions
- Grout selection matched to installation method and environmental exposure
- Concrete quality and placement access so the designed embedment is achievable
- Hardware geometry that allows inspection and retorque access later
Installation tooling belongs in the planning conversation too. If the job requires post-installed anchors in structural concrete, bit choice, hammer-drill capability, dust extraction, and hole cleaning procedure can all affect final performance. Crews that need a practical primer on selecting the right concrete drill will save time by matching the tool setup to the anchor method before mobilization.
Build a design brief crews can use
A useful anchorage brief doesn't stop at calculations. It should give the field team a decision-ready package:
- Load summary with governing cases clearly flagged
- Ground assumptions tied to actual site observations or geotechnical input
- Anchor family selection with acceptable alternates defined in advance
- Material and coating requirements for the exposure conditions
- Installation tolerances for alignment, depth, cleaning, cure, and tensioning
- Inspection hold points that prevent hidden defects from getting buried
Teams doing integrated site work often fold that brief into broader heavy civil construction planning so foundation, conduit, pad, and support details all follow the same load-path logic.

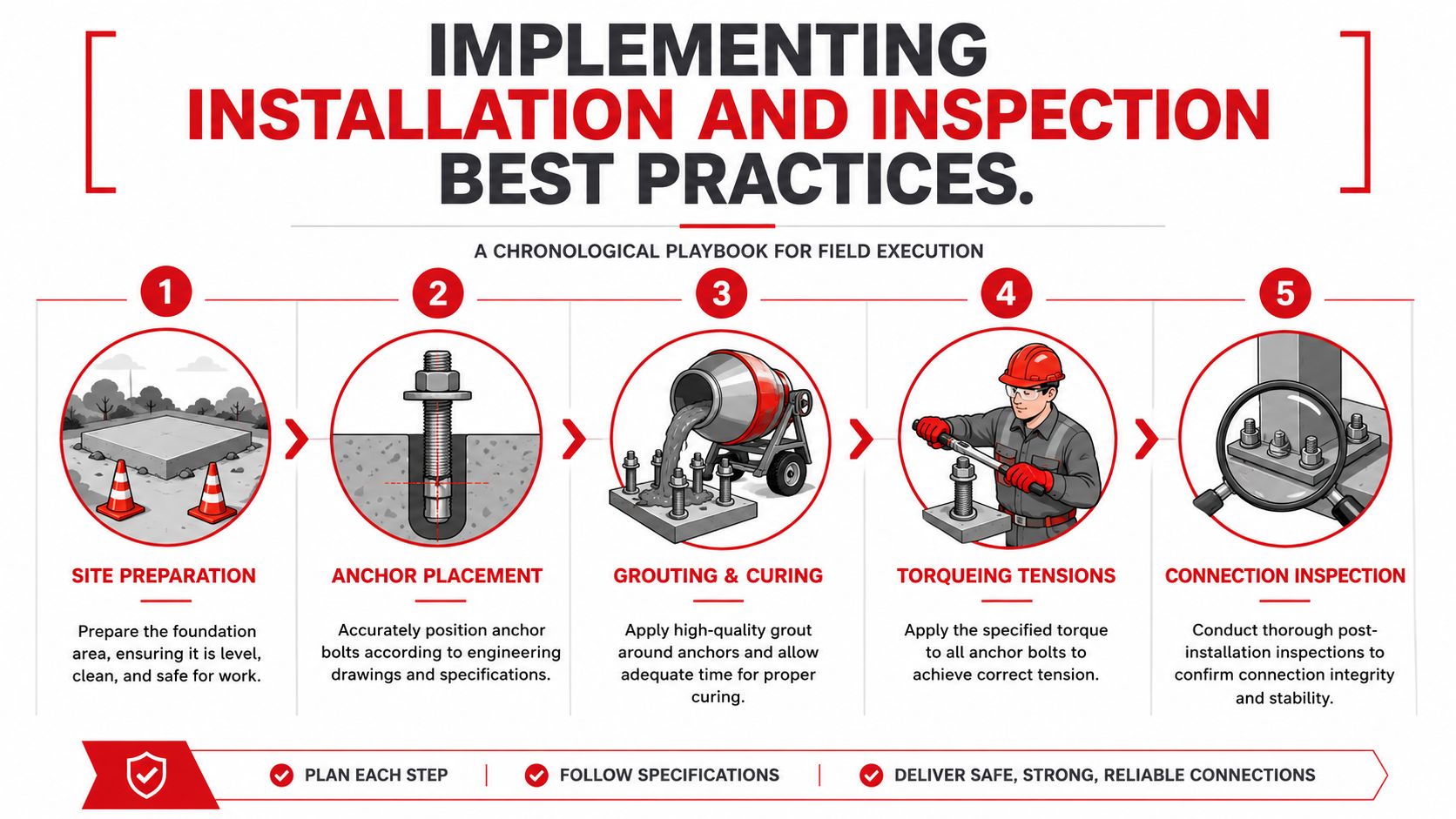

Implementing Installation and Inspection Best Practices
Design quality only reaches the site if the field process protects it. Most anchor failures begin as small execution misses. A hole isn't cleaned well enough. An insert shifts before the pour sets. Grout cures under poor conditions. Torque is applied in the wrong sequence. By the time someone notices, the anchor is already part of a larger assembly.
A disciplined install sequence prevents that drift.
Prepare the site before the anchor arrives
Crews should verify control points, foundation geometry, access conditions, and material staging before they touch the anchor hardware. If the site is muddy, out of level, or congested with other trades, the risk of placement error rises quickly.
A basic pre-install check should confirm:
- Correct hardware on site with traceable tags or packaging
- Foundation or substrate readiness including cleanliness and soundness
- Environmental conditions suitable for grout, adhesive, or concrete work
- Drawing alignment so crews aren't improvising around a layout conflict
Place anchors with alignment in mind
Placement errors are expensive because they ripple into steel fit-up, cable routing, and connection stress. Anchors need to land in the right position, but they also need to stay there through the rest of the work.
Use templates, jigs, or controlled set devices when possible. For embedded systems, crews should protect projection, verticality, and spacing through the pour and during vibration. For post-installed systems, hole location, diameter, depth, and cleaning sequence matter as much as the anchor product itself.
A crooked anchor may still accept a nut. That doesn't mean it's carrying load the way the engineer intended.
Treat grouting and curing as structural work
Grout often gets treated like a finish material. It isn't. It is part of the load path. Voids, contamination, improper mixing, and rushed curing can all create hidden weakness.
Field supervisors should define:
- Mix procedure
- Placement method
- Required temperature controls
- Minimum cure conditions before loading
- Rejection criteria for damaged or suspect work
Video walkthroughs can help teams align on what proper execution looks like in the field. This installation clip is useful as a visual refresher before a crew briefing:
Apply torque and tension in a controlled sequence
Anchors rarely perform best when crews tighten “until it feels right.” Use the specified method, the specified tools, and the specified sequence. Uneven tightening can introduce unintended stress and leave one side of the assembly doing too much work.
For critical assemblies, inspection should verify:
| Checkpoint | What the inspector confirms | Why it matters |
|---|---|---|
| Position | Layout, spacing, and projection match the drawings | Prevents fit-up stress and eccentric loading |
| Bond or embedment | Hole cleaning, grout condition, and depth meet requirements | Protects pullout and shear performance |
| Torque or tension | Final values are applied correctly and recorded | Confirms the connection is activated as designed |
| Condition | No cracking, spalling, distortion, or coating damage | Catches defects before commissioning |
Use hold points, not just final walkdowns
Final inspections are too late for many anchorage defects. Crews need hold points at the moments when hidden work is still visible. Typical hold points include hole preparation, pre-pour anchor template check, post-placement verification, grout placement, and final torque confirmation.
When teams skip those checkpoints, they often end up inspecting symptoms instead of causes.
Managing Documentation and QA Workflows
The best anchor on the site can become a future liability if nobody knows exactly what was installed, how it was tested, or what assumptions governed the design. Documentation isn't paperwork for its own sake. It's the operating memory of the asset.
Record what future teams will need, not just what procurement asked for
A thin project file usually contains approved drawings, delivery tickets, and a signoff sheet. That isn't enough for long-life infrastructure. Maintenance teams need records that explain why the anchor was chosen, what the field conditions were, and what acceptance checks occurred.
A useful QA file should include:
- Design basis documents with governing loads and assumptions
- Material records for steel, coatings, grout, and concrete-related items
- Field installation logs with dates, crew notes, environmental conditions, and deviations
- Inspection reports tied to specific hold points
- As-built sketches or marked drawings showing final conditions
- Corrective action records if anything was rejected, reworked, or accepted with conditions
Make QA workflows visible and repeatable
The strongest QA systems don't rely on one experienced superintendent remembering everything. They use a workflow that turns critical checks into habits.
A simple approach works well:
Pre-install review
Confirm drawing version, hardware match, substrate readiness, and inspection schedule.In-process verification
Capture the hidden work before it disappears. Photos, checklists, and supervisor signoffs matter here.Acceptance package assembly
Tie torque records, grout logs, and as-builts to the specific anchor location or foundation ID.Operations handoff
Give the maintenance team enough information to inspect intelligently later.
Why warranty-style thinking helps
Civil products often come with strong QA language because manufacturers and installers know the asset will be judged over time, not only at turnover. That mindset is useful in telecom anchorage too. Teams that review examples of durable concrete sleeper warranties can borrow a practical lesson: define the conditions, installation expectations, exclusions, and record requirements before the work starts.
Documentation should answer three future questions fast: What was installed? Was it installed correctly? What should we inspect first if conditions change?
Bring anchor data into operational systems
For larger networks, anchorage records shouldn't live only in a PDF folder. Add them to GIS, CMMS, or asset databases where planners and maintenance crews can find them by site, structure, or route segment. Even a modest tagging system improves handoff quality.
Track items such as:
- Anchor type and location
- Install date
- Exposure environment
- Inspection interval
- Known limitations or watch points
That level of discipline reduces rework during audits, lease modifications, retrofits, and outage investigations. More important, it prevents the all-too-common situation where the people inheriting a site must guess which anchors are critical and which are routine.
Mitigating Risks with Maintenance and Real World Case Studies
Anchors age in different ways. Some corrode. Some loosen under repeated loading. Some stay intact while the surrounding ground or concrete changes enough to alter performance. Maintenance works best when teams inspect by risk, not by habit.
Three field patterns worth watching
A coastal macro site may show coating breakdown and corrosion at exposed base connections long before the steel section looks alarming from a distance. In those cases, crews usually catch the issue through visual inspection, rust staining, or washer and nut condition changes. The fix may involve cleaning, replacement, recoating, and checking whether hidden loss has changed load distribution.
A cold-region fiber hut creates a different problem. Recent 2024 to 2025 NTIA data indicates that 22% of rural fiber deployment failures in cold climates stem from improper cable anchorage, yet there's still no standardized tension table for Anchorage-like conditions in the available whitepaper and academic material cited in the verified data (NTIA-related figure in the verified data source link). That tells operators something important. In freeze-prone markets, anchorage deserves targeted review even when the route itself appears well built.
A tower retrofit program often starts after engineers spot movement, bolt distress, or changing alignment during a broader structural assessment. The successful programs don't just replace hardware. They reset inspection triggers, clarify retorque procedures, and document the revised baseline so the site doesn't drift back into uncertainty.
Build a maintenance rhythm around consequences
Teams using a structured Forge Reliability RCM guide can adapt reliability-centered maintenance thinking to anchorage by asking what failure mode matters most at each site: collapse risk, service interruption, alignment loss, or hidden degradation.
That leads to better triggers:
- Inspect after major weather exposure
- Recheck after adjacent excavation or civil work
- Flag sites with corrosion, freeze-thaw, or unstable soil history
- Review anchors whenever mounted loads or cable pathways change
Conclusion and Next Steps for Reliable Anchorage
Quality transmission anchorage comes down to discipline. Define the load path clearly. Match the anchor system to the site and material conditions. Install it with controlled steps, not field improvisation. Document the work so future teams can inspect and maintain it with confidence.
If you're auditing an existing portfolio, start with your highest-consequence sites. If you're launching a new build, require anchor-specific design briefs, hold-point inspections, and complete as-built records from day one.
